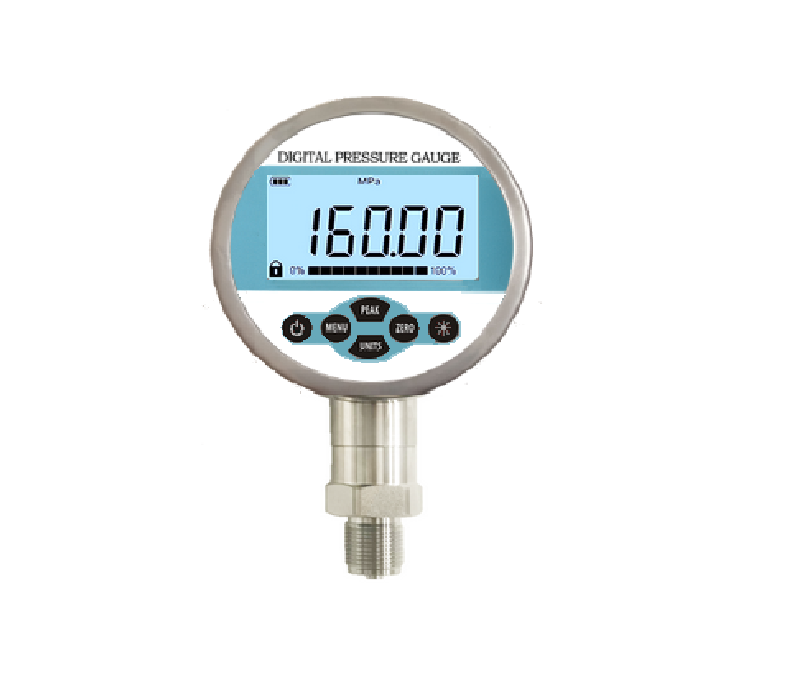

**Product Overview**

 The ultra-high pressure precision digital pressure gauge adopts high-precision, low-power, large-scale integrated circuits as its core components, primarily consisting of a high-precision measurement chip, battery charging protection circuit, sensor, and signal processing circuit. This product utilizes a microprocessor to automatically compensate and correct zero drift, nonlinearity, and other factors, while high-stability pressure sensors and other high-performance components ensure accuracy and reliability. The gauge allows users to customize various functional parameters, offering flexible applications and multiple optional features. It can serve as a high-accuracy pressure calibration standard or as a working instrument in industries such as power, metallurgy, petroleum, and chemical engineering for laboratory and field measurement and research.

**Product Features**

1) Allows flexible and convenient parameter settings anytime, anywhere, according to user needs.

2) Customizable functional pressure gauges tailored to user requirements.

3) Temperature-compensated for high accuracy and a wide operating temperature range.

4) Features peak/valley recording, one-key zero reset, and backlight on/off for practicality and ease of use.

5) Low-power design with a high-capacity lithium battery for extended service life and high stability.

6) Supports 12 pressure units with one-key switching for broader application.

7) Optimized algorithms and anti-interference design ensure superior quality and stability.

8) Triple-protection design enhances durability and reliability.

9) Includes ambient temperature monitoring and factory reset functions for safer and more user-friendly operation.

**Technical Parameters**

1. **Operating Environment:**

   - Ambient Temperature: (-20 to 70) °C

   - Relative Humidity: <95%

   - Atmospheric Pressure: (86 to 106) kPa

   - Storage Temperature: (-40 to 80) °C

2. **Display:**

   - STN LCD with white backlight, 5-digit display.

3. **Pressure Measurement Range:**

   - 0~160MPa

   - 0~200MPa

   - 0~260MPa

   - 0~300MPa

   - 0~400MPa

   - Other ultra-high-pressure ranges available upon customization.

4. **Accuracy Class:**

   - 0.4% FS, 0.2% FS, 0.1% FS (other accuracies customizable).

5. **Power Supply:**

   - DC 3.6V mercury-free alkaline battery / rechargeable battery / external DC 24V power supply (optional).

6. **Pressure Units:**

   1) Supports 12 pressure units: Pa, kPa, MPa, bar, mbar, psi, kgf/cm², mmH₂O, inH₂O, mmHg, inHg, Torr. One-key switching between units.

   2) If the display does not read zero at 0 pressure, press the "Zero Calibration" key to ensure measurement accuracy.

7. **Dimensions (refer to product diagram for details):**

   - Dimensions: Φ110mm × 49mm

   - Weight: Approx. 0.5kg

   - Process Connection: M20 × 1.5 external thread (other thread specifications or mounting methods optional).

8. **Overload Pressure:**

   - 120% FS overload (other overload ranges customizable).

9. **Mounting Method:**

   - Radial (optional: axial, axial with flange).

10. **Protection Rating:**

    - >IP65

11. **Additional Functions:**

    - Optional RS485 protocol

    - 4-20mA output
