Digital Pressure Gauge

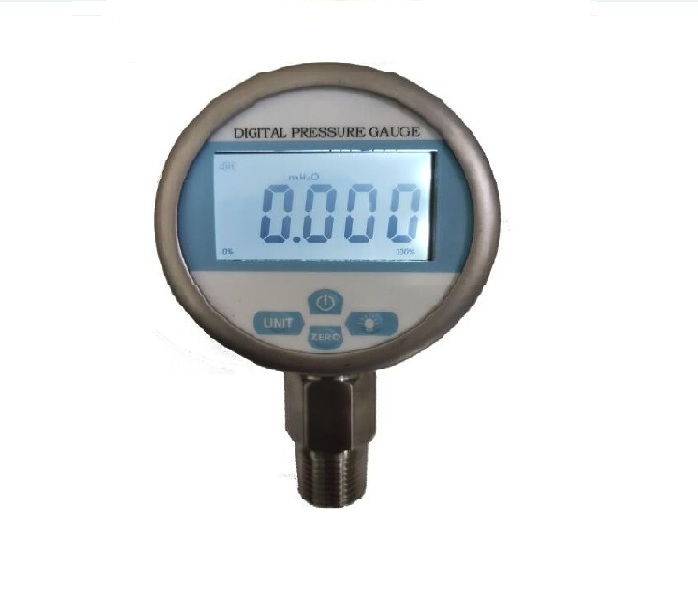

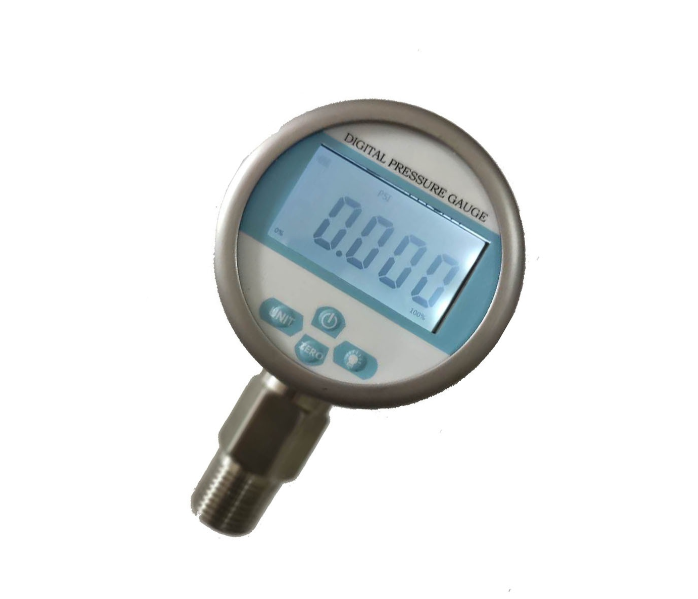

DPG280 Digital Pressure Gauge

产品描述：High Accurary Pressure Gauge, field pressure gauge vacuum pressure gauge DPG280 Digital Pressure Gauge is portable, high-accuracy test gauge. With advanced microprocessor technology and state-of the-
在线订购

DPG280 Digital pressure gauge is portable, high-accuracy test gauge. With advanced microprocessor technology and state-of the-art silicon pressure sensors,DPG280 testgauges provide an accurate,reliable and economic solution for pressure application in the industries of power,chemical ,petrol, metallurgy,metering,etc.Every DPG280 Digital pressure gauge passes the high and lower temperature aging, so it could assure the products more accurate and reliable.

Products Feature

Accuracy：0.4%F.S,±0.2%FS
Pressure range to 1000bar
4 bits big LCD display
Back light,
Stainless steel housing
Pressure units available (Mpa、bar、kgf 、mH2O、PSI、KPA、mmHg、torr、mBAR、cmH2O、Pa);
Zero clearing
On/off button,
Low voltage alarm
Maximun and minimum function
Dry-Battery-powered,low power design keeping it work more than 12 months
Connection :1/4NPT,1/4BSP (or according to clients' demand)
Pressure percentage display

SPECIFICATION:

Range	General Range: 0-0.2...1...1.6...5...10...25...40...60...100Mpa MicroRange:0-5...10...25...40...60...100Kpa NegativeRange:-100 ~0Kpa(-1 ~0bar)
Over Pressure	Range≥10Mpa 150%; Range<10Mpa 200%
Acc.	±0.4%FS, ±0.2%FS
Size	80mm,60mm,100mm(optional )
Supply	3V(2 batteries of AAA)
Function	Units/Back light/Reset/ON/OFF .IP65,Max.Min,Power display
Measurement Medium	Gas, water, oil
Pressure Connection	M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4
Connector Material	304SS

No.	Pressure Range
No.	Pressure Range
DPG280-1	(-1~0)bar
DPG280-2	(0~0.16) bar
DPG280-3	(0~0.25) bar
DPG280-4	(0~0.4)bar
DPG280-5	(0~0.6) bar
DPG280-6	(0~1) bar
DPG280-7	(0~1.6)bar
DPG280-8	(0~2.5)bar
DPG280-9	(0~4) bar
DPG280-10	(0~6) bar
DPG280-11	(0~10 )bar
DPG280-12	(0~16) bar
DPG280-13	(0~25)bar
DPG280-14	(0~40 )bar
DPG280-15	(0~60)bar
DPG280-16	(0~100)bar
DPG280-17	(0~160)bar
DPG280-18	(0~250)bar
DPG280-19	(0~400)bar
DPG280-20	(0~600)bar
DPG280-21	(0~700)bar
DPG280-22	(0~1000)bar
