Digital Pressure Gauge

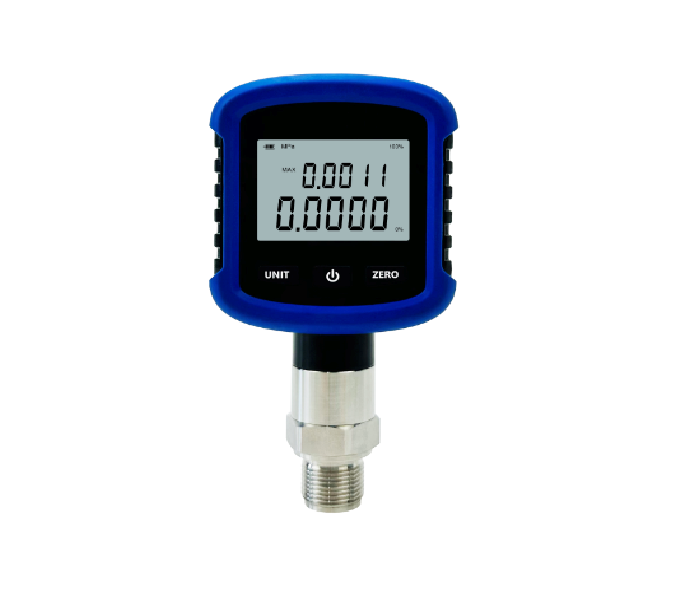

DPG286 Digital Pressure Gauge

产品描述：☆ Dial orientation can be rotated 330° ☆ Super large LCD screen, supports multiple unit switching ☆ Supports multiple functions such as clearing, backlight, Bluetooth connection,
在线订购

Product description
DPG286 is a digital pressure gauge with a built-in high-precision pressure sensor that can accurately display pressure in real time and has the characteristics of high precision and good long-term stability.
This digital pressure gauge is equipped with a large-size LCD display and has multiple functions such as zeroing, backlight, on/off, unit switching, low-voltage alarm, etc. It is simple to operate and easy to install. The dial orientation
can be rotated 330°, allowing customers to read from the desired angle. The equipment product adopts an integral shell with rubber coating, which has good shock resistance and can measure gas, liquid, oil and other media that are
non-corrosive to stainless steel. This series of products supports Bluetooth applets and APP configuration parameters, including: pressure value display, acquisition rate modification, clearing operation and other settings. The product comes with open source Bluetooth protocol parsing files to facilitate customers' secondary development.
DPG286 digital pressure gauge is suitable for portable pressure measurement, equipment matching, calibration equipment and other pressure measurement fields.
Technical features
☆ Dial orientation can be rotated 330°
☆ Super large LCD screen, supports multiple unit switching
☆ Supports multiple functions such as clearing, backlight, Bluetooth connection,
APP collection, etc.
☆ Low power consumption design, 2 AA batteries, 12 months battery life
☆ The product is beautiful, the shell is fully covered with rubber, and the hand feels delicate
Technical Parameters
Measuring range: -0.1~0~0.1...1..60MPa
Overload pressure: 200%FS
Backlight color: white backlight
Appearance size: 143.5*75*40.5mm
Accuracy level: 0.5%FS, 0.2%FS
Long-term stability: better than +0.3%FS/year
Working temperature: -20~65℃
Electrical Protection: Anti-electromagnetic interference design
Measuring medium: oil, water, gas and other stainless steel non-corrosive
media
Pressure interface: M20*1.5, G1/4 or customized thread
Connector material: 304 stainless steel
Shell material: TPE+ABS
Product functions: power on/off, backlight, reset, unit switching,
Bluetooth connection
Power: 3V (2 AA batteries)
Battery display: four-segment display
Dial: Dial can be rotated 330°
Pressure unit: MPa, bar, kgf, mH20, PSI, kPa,
mmHg, mBAR, mmH2O, Pa, inWC
Protection level: IP54
