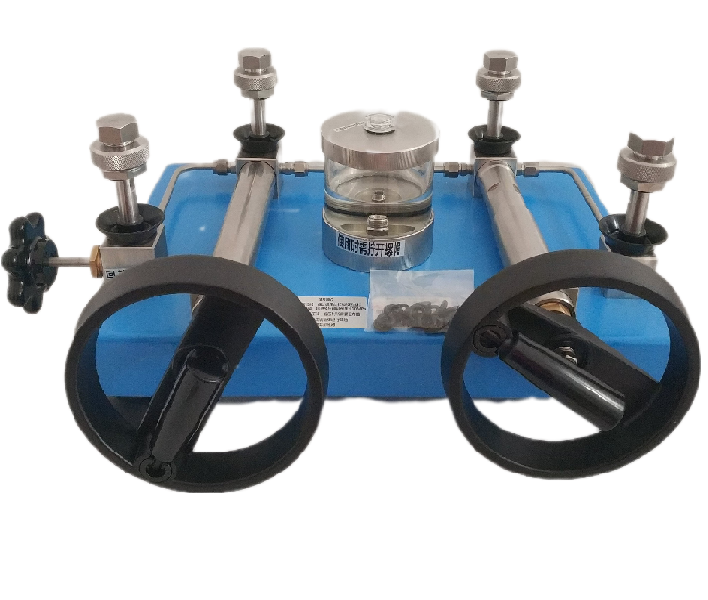

KT250  hand hydraulic source (0~70) MPa
Product overview:
The KT250 hydraulic comparator is a similar product to the KT106, with the same mesa structure and a design that can produce a pressure range of 700 bar. The dual pressure shaft structure design makes operation simpler, saves labor, saves operating space, and eliminates the need for external threads. Can adjust accurate pressure values and calibrate small range pressure instruments. The detachable water cup is easy to clean and maintain, and allows for timely inspection of the working medium from the outside. Four outputs with quick couplings enable them to calibrate pressure gauges together. It widely calibrates pressure instruments in the laboratory.
Main purpose:
Technical indicators:
1 Pressure range: (0-70) MPa
2 Stability: better than 0.05% F · S
3 Working medium: transformer oil
4 Output interface: M20 * 1.5
5. Boundary dimension: 490mm * 320 * mm * 230mm
6 Weight: 13kg
