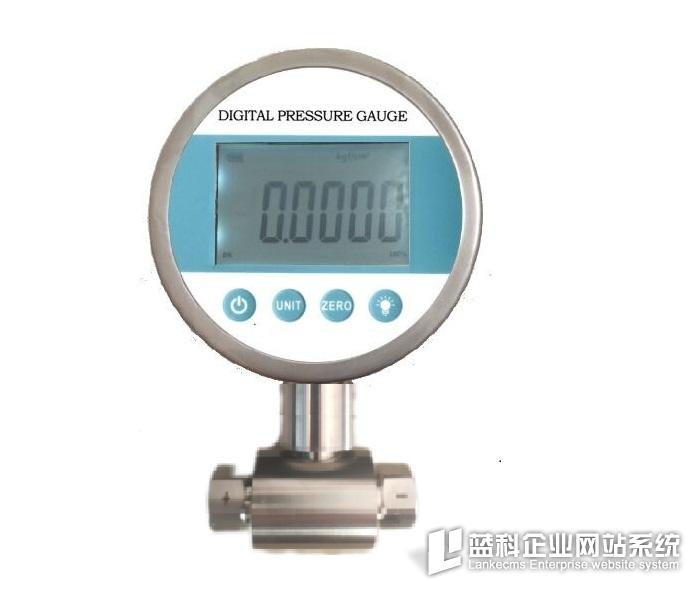

The DPG200-DP digital differential pressure gauge is a high-precision intelligent digital pressure gauge specially designed to measure the pressure difference between the two ends. The built-in high-precision diffused silicon pressure sensor can accurately display the pressure difference in real time, and has high precision and long-term. Good stabi The DPG200-DP digital differential pressure gauge is equipped with a large LCD display with clear, backlight, switch, unit switching,Low-voltage alarm and other functions, easy to operate and easy to installThe product also has a maximum value minimum record function that is used as a peak record table The product adopts 304 stainless steel shell and joint, which has good shock resistance and can measure gas, liquid, oil and other non-corrosive medium for stainless steelWidely used in the measurement of gas and liquid pressure. Mainly used to measure the double end pressure difference.
Industrial Application:
☆ Mechanical and Electronic Industry
☆ Instrumentation Supporting
☆ Pressure Laboratory
☆ Engineering Machinery Automation
Technical features:
☆ 304 stainless steel case, beautiful product
☆ LCD screen, white backlight
☆ Unit switching, clearing, backlighting, switching machine, maximum value minimum record, etc.
☆ Pressure units available (Mpa、bar、kgf 、mH2O、PSI、KPA、mmHg、torr、mBAR、cmH2O、
Pa);
☆ Low power design, battery powered, up to 12-24 months
Parameter index:
Range |
(0~10...25...40...60...100...250...400...600)kPa,(0~1...1.6) MPa |
Overload pressure |
diaphragm differential pressure 200% (positive overpressure); 100% (negative overvoltage) |
Backlight color |
white backlight |
Dial size |
100mm |
Accuracy level |
0.4% FS, 0.2% FS |
Long-term stability |
typical: ± 0.2% FS / year |
Display screen |
5-digit LCD display |
Working temperature |
-20 ~ 85 ° C |
Compensation temperature |
0 ~ 40 °C |
Electrical protection |
anti-electromagnetic interference design |
Sampling frequency |
3 times / sec |
Measuring medium |
gas or liquid compatible with 316 stainless steel |
Pressure interface: |
G1/4 internal thread |
Connector material |
304 stainless steel |
Shell material |
304 stainless steel |
Product function |
power on/off backlight back to zero unit switching maximum value minimum record |
Supply voltage |
4.5V (3pcs AA batteries) or USB powered |
|
