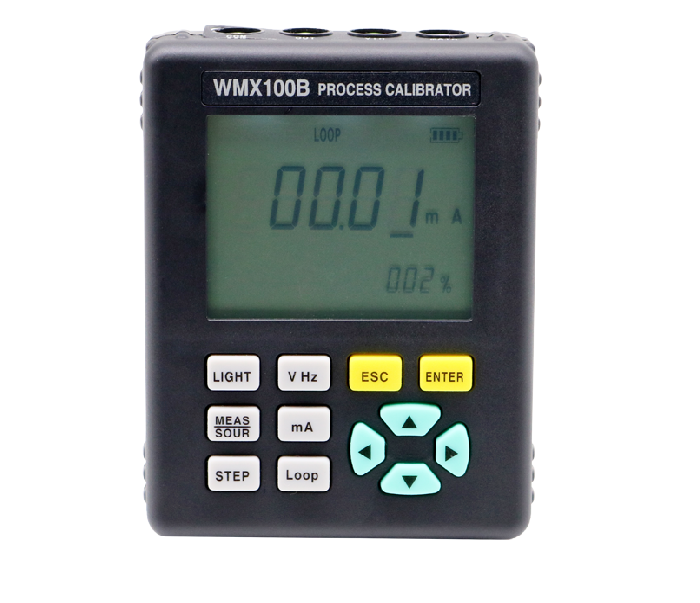

This handheld current and voltage calibrator has function of a variety of signal measurements and output, including measurements of voltage, frequency, current, the loop current, and output of voltage, frequency, active and passive current output, etc., adopting LCD break code screen and function buttons. The operation is simple, easy-to-use, with high precision, long standby time and programmable automatic output function. Widely used in laboratory, industrial field PLC and process instrument, electric valve debugging.
Main function
|
Function |
Measurements |
Output |
Remark |
|
DC voltage |
0～30 V |
0～15V |
|
|
DC current |
0～24 mA |
0～24mA |
|
|
Loop current |
0～25 mA |
/ |
Isolate 24v power supply |
|
Frequency |
0～10kHz |
0～10kHz |
|
|
The passive current |
/ |
0～24mA |
|
|
Function |
Measurement Range |
Resolution Ratio |
Accuracy （Reading%+Counting） |
|
DC voltage |
Measurement 0～30V |
0.01V |
0.1%+4 |
|
Output 0～15V |
0.01V |
0.1%+4 |
|
|
DC current |
Measurement 0～24 mA |
0.01mA |
0.1%+4 |
|
Output 0～24 mA |
0.01mA |
0.1%+4 |
|
|
Frequency |
Measurement 0～10kHz |
Four digits |
|
|
Output 0～10kHz |
Four digits |
|
|
|
Loop current |
0～25 mA |
0.01mA |
0.1%+4 |
|
The passive current |
0～24 mA |
0.01mA |
0.1%+4 |
|
24V loop current |
24V |
/ |
10% |
l Working Temperature：-10℃～55℃；
l Relative humidity：20～80%RH（without condensation）
l Power：3.7V lithium -ion rechargeable battery, power adaptor:5V/1A
Reverse connect protection：30V
