I. Product overview:

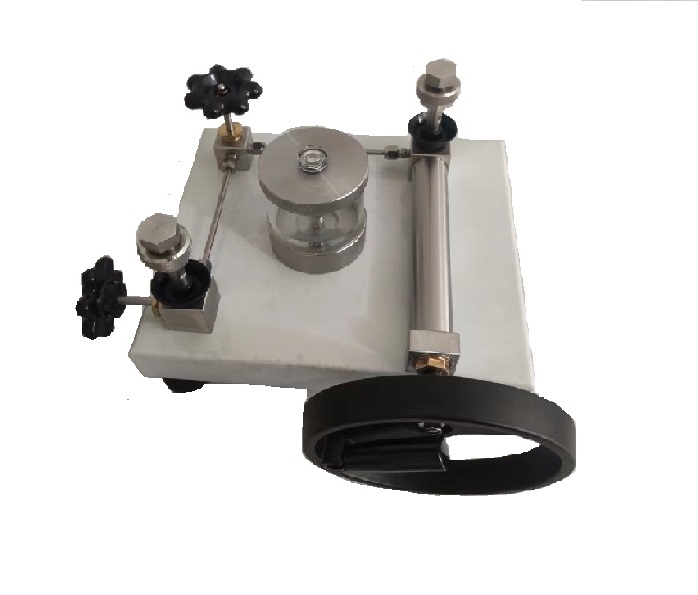

KT70 portable water pressure calibration bench is composed of pressure regulating valve, check valve, micro adjustment valve and pressure output interface. It has an overall curing structure, novel style, simple operation, easy maintenance, good sealing performance, stable pressure rise, fast speed, labor saving, simple operation, etc. It is an ideal replacement product of piston pressure source. Economical and affordable, light weight, small volume and easy to carry. It is suitable for laboratory and on-site measurement pressure verification and detection

Specifications

u Generated pressure range: (-0.85~400)bar

u Stability: 0.05% F · S

u Working media:

Distilled water

u Material:Body:Stainless steel

u Seals:Buna-N

u Output interface connection: M20×1.5Female

u Weight:9kg

u Dimensions: 360 * 280 * 210 (mm)
