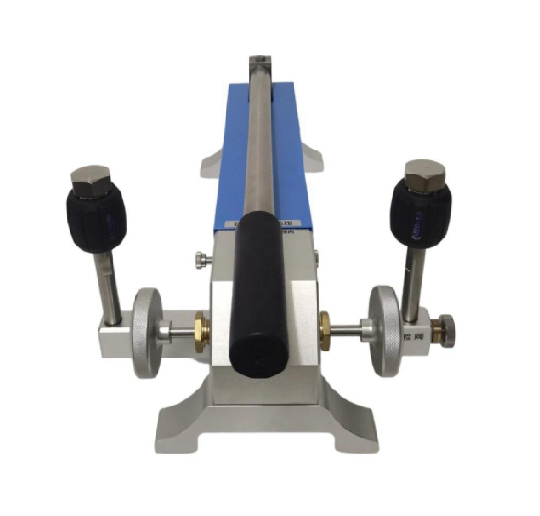

KT35 Portable High Pressure Comparator

Product Overview:

KT35 portable high pressure pumps can be used in a laboratory or field environment, with open and transparent design, with simple operations, smooth lifting, low fineness, maintenance, and ease of leakage. Precision cut-off valves verify the stability of pressure during the process. Uniquely designed M20x1.5 threads are rapidly connected, so that the pressure gauges can be removed quickly without wrenching and raw material belts. A well-designed pressure pole structure, which is less-than-absorbed, will allow you to do half-hour your calibration work.

Because the product is designed uniquely, it is incomparable to hand-plugs, whether in terms of pressure efficiency, durability or sealability.

Technical parameters:

Use of the environment: on-site and laboratory

Pressure range: (-0.095 ~ 16) MPa range optional

Adjustment detail: 10Pa Pressure media: Air

Pressure connection: M20x1.5 (2)

Volume: 540 mm * 270 mm * 140 mm

Weight: 7.1 kg
