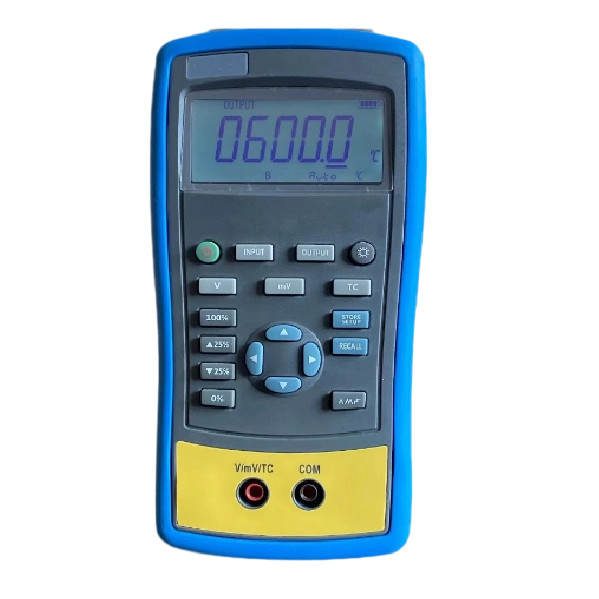

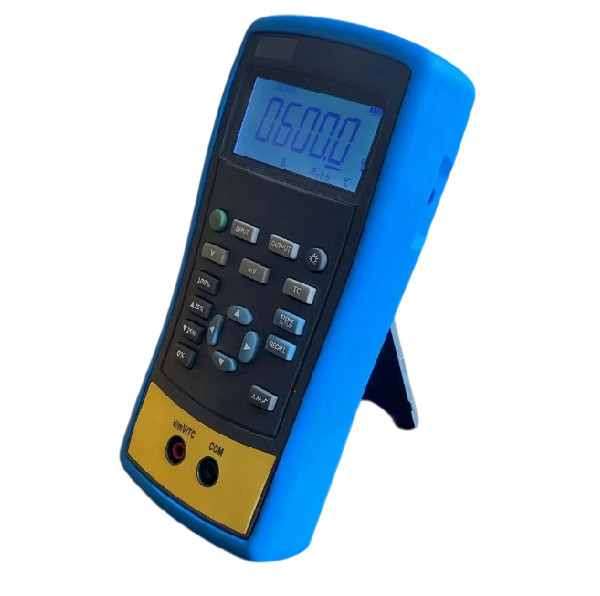

KT-1814 Thermocouple Calibrator-KDS INSTRUMENT

KT-1814 Hand-held Thermocouple Calibrator integrates measurement and output of voltage, mV signal, thermocouple into one. With LED, the data could be showed more clearly.

Features

●Accuracy:0.05%Rdg

●Output of DC mV and simulation of thermocouple output.

●Voltage, DC mV and thermocouple measurement.

●Thermocouple(TC) measurement provides cold-junction compensation.

●Manual stepping, automatic stepping, 0～100% phase step and slope output

●Support for PC communication

●Using environment temperature:-18℃~55℃

● Store environment temperature:(-20 – 60)°C

●Relative humidity :0~ 90RH No condensation

●Weight：0.35Kg

●Size:185mm×93mm×47mmm

●Power supply: 6 R03-model rechargeable batteries or power adapter

● communication mode：RS232

Function	Measure	Source
DC V	0～30V	Not available
DC mV	0～100mV	0～100mV
Thermocouple	E,J,K,T,B,R,S,N	E、J、K、T、B、R、S、N
Others	Stepping output, ramp, phase step output, user-defined range

Standard Accessories

hard spot test leads (one sets）One 12V/1A power adaptor 6 LR03-model (size 7)
