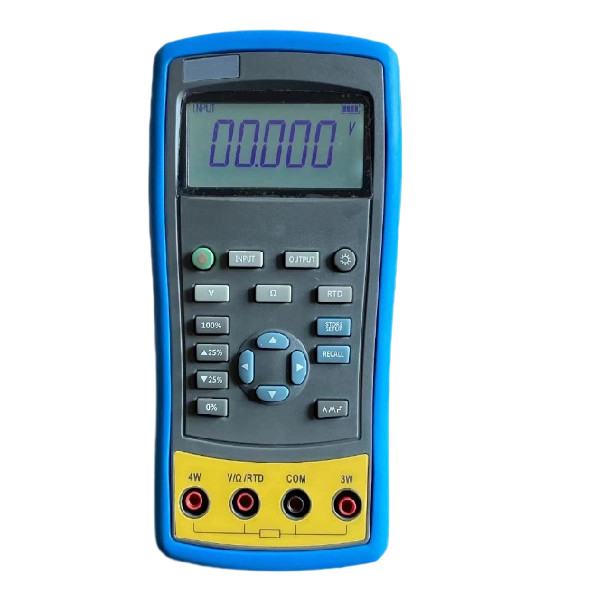

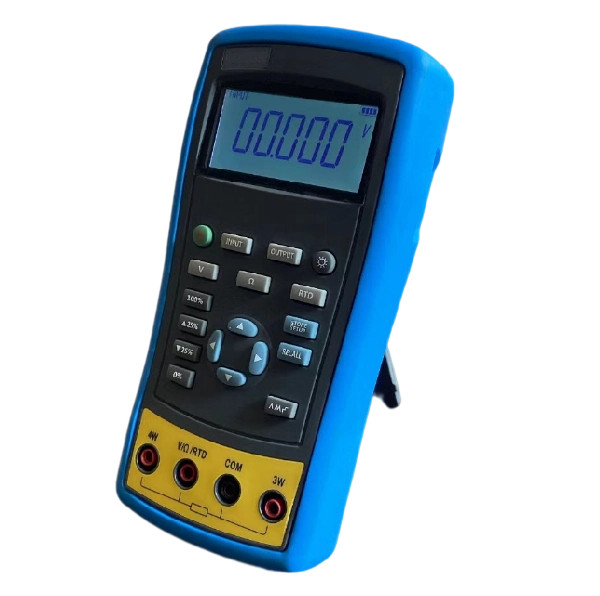

KT-1812 RTD Calibrator-KDS INSTRUMENT

For the temperature calibration professional that wants a highly accurate, easy-to-use, single function RTD temperature. It is a kind of calibrating RTD temperature transmitter instrument. It can measure and simulate various type RTD. It can also simulate and test resistance. calibrator the KT-1810 is the ideal test tool.

Features

●Accuracy:0.05%Rdg

●Measure output temperature of thermal resistance

● May simulate output of thermal resistance

●Automatic identification of three-wire or four-wire connection mode

● Perfect performance on waterproof protection: IP67 grade

● In case of connecting 220V with automatic over voltage protection function.

● With manual stepping, automatic stepping and 0 ~ 100% output of phase step and ramp function

● LED with white backlight

●Usingenvironment temperature:-18℃~55℃

● Store environment temperature:(-20 – 60)°C

●Relative humidity :0~ 90RH No condensation

●Weight：0.35Kg

●Size：185mm×93mm×47mmm

●Power supply: 6 R03-modle rechargeable batteries or power adapter

● communication mode：RS232

Function	Measure	Source
DC V	0～30V	Not available
Resistance	0～3200Ω	0～3200Ω
RTD	Pt100, Pt1000, Cu50, Cu100	Pt100, Pt1000, Cu50, Cu100
Others	Stepping output, ramp, phase step output, user-defined range

Standard Accessories

hard spot test leads (one sets）One 12V/1A power adaptor 6 LR03-model (size 7)
