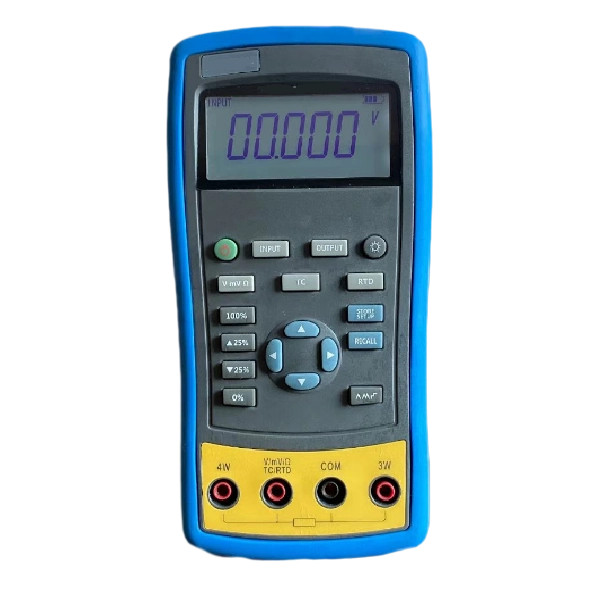

KT-1810 Temperature Calibrator-KDS INSTRUMENT

KT-1810Temperature Calibrator integrates measurement and source of voltage, mV, resistance, simulate thermocouple and simulate RTD into one. It feature in high precision, high resolution and reliable. With big LED display, it is easy to operation, with firm structure, small and convenient. It is designed specifically for the Process industry with broad workload coverage and unsurpassed accuracy in mind.

Features

●Accuracy:0.05%Rdg

●It allows you to measure DC V, DC mV, resistance ,TC and RTD.

● Outputs resistance, simulation of TC and RTD.

●Thermocouple(TC) measurement provides cold-junction compensation.

● Manual stepping, automatic stepping, 0～100% phase step and ramp output.

●Super-strong protection：The waterproof grade is IP67. Automatic protection against the signal terminals connect to the 220V.

● Support for PC communication

●Using environment temperature:-18℃~55℃

● Store environment temperature:(-20 – 60)°C

●Relative humidity :0~ 90RH No condensation

●Weight：0.35Kg

●Size：185mm×93mm×47mmm

●Power supply: 6 R03-model rechargeable batteries or power adapter

● communication mode：RS232

Function	Measure	Source
DC V	0～30V	Not available
DC mV	0～120mV	0～100mV
Resistance	0～3200Ω	0～3200Ω
RTD	Pt100, Pt1000, Cu50, Cu100	Pt100, Pt1000, Cu50, Cu100
TC	E,J,K,T,B,R,S,N	E、J、K、T、B、R、S、N
Others	Stepping output, ramp, phase step output, user-defined range

Standard Accessories

hard spot test leads (one sets）One 12V/1A power adaptor 6 LR03-model (size 7)
