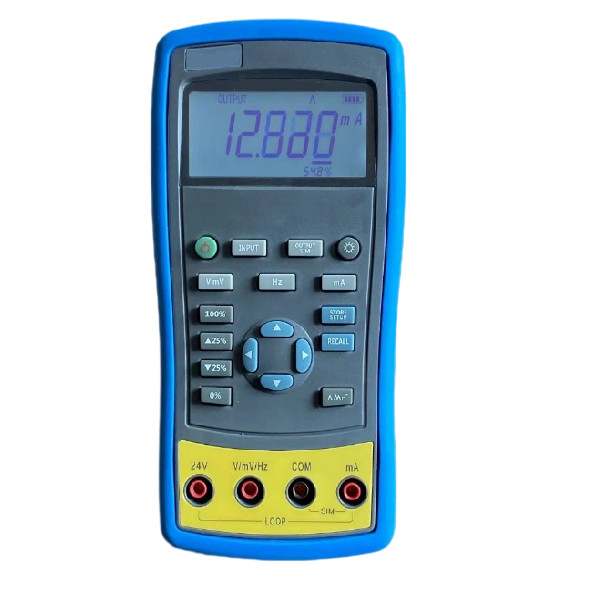

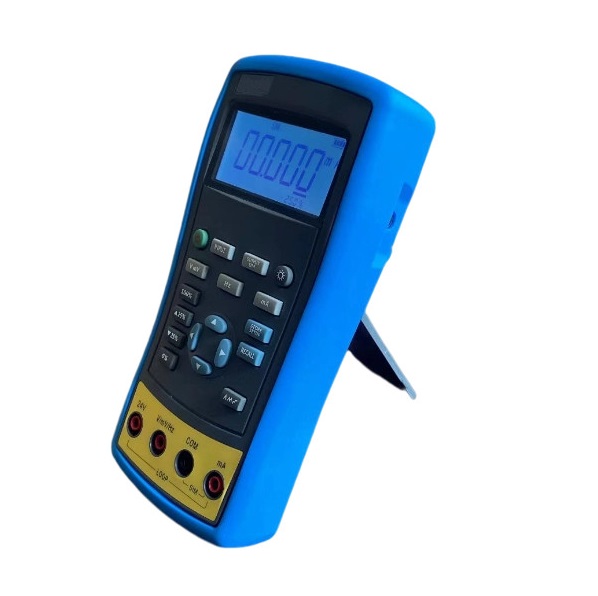

KT-1815 Current and Voltage Calibrator
Model: KT-1815
Minimum order:
Wheelbase:
Weight:
Function:
KT-1815 Current and Voltage Calibrator is designed to save time and produce high-quality results. This makes the KT-1815unique as both an affordable, compact loop calibrator. This tool reduces the time it takes to measure, or source, voltage or current and power up a loop.
Features
●Accuracy:0.05%Rdg
● Measure and source voltage, current (active or passive), mV and frequency.
●. May simulate two-wire channel transmitter.
●Perfect performance on waterproof protection: IP67 grade
●In case of connecting 220V voltage with automatic over voltage protection function
●With manual stepping, automatic stepping and 0 ~ 100% output of phase step and ramp function.
●Big LED with adjustable backlight and auto power off function.
●Supply DC24V loop power.
●Support for PC communication
●Using environment: temperature: (-18~55)℃
●Store environment: temperature:(-20~60)°C
●Relative humidity: 0~90RH
●Weight：0.35Kg
●Size：185mm×93mm×47mm
●Power supply: 6 R03-model rechargeable batteries or power adapter
● communication mode：RS232
Function | Measure | Source |
DC V | 0～30 V | 0～10 V |
DC mV | 0～100 mV | 0～100 mV |
DC mA | 0～24 mA | 0～24 mA |
Frequency | 1.000Hz～99.999kHz | 0.00Hz～20.000kHz |
Others | 24V power supply, Step, Ramp. | |
Standard Accessories
hard spot test leads (one sets）One 12V/1A power adaptor 6 LR03-model (size 7)
