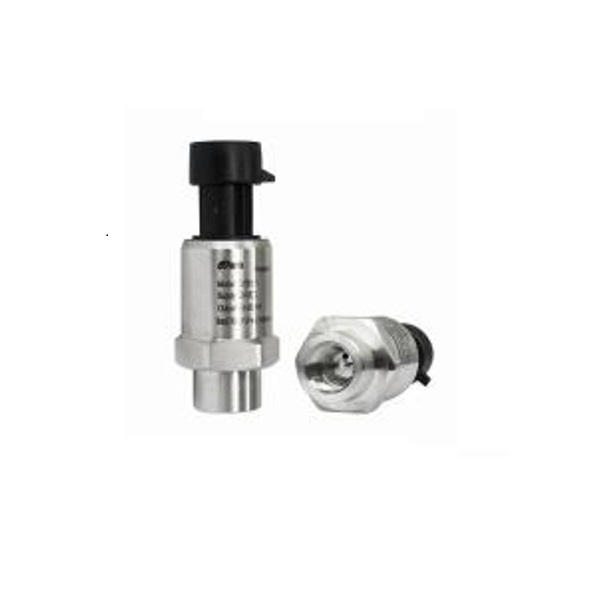

KDS612 HVAC Pressure Transducer

Product Overview

KDS612 is made from ceramic sensitive diaphragm and stainless steel diaphragm The KDS612 is precision engineered to fit most industrial pressure measurement.The compact and rugged design makes these pressure transmitter suitable for applications including process control systems, hydraulic systems and valves, refrigeration and HVAC controls, level measurement and test equipment.

A wide range of process connection and electrical connection options are available to meet almost requirement.

Applications

Process control systems

Refrigeration and HVAC controls

Hydraulic systems and valve

Machine building

Pumps and compressors

Features

Measuring ranges from -1bar to 100bar Absolute, gauge and sealed gauge

Accuracy: ±0.25%FSO or ± 0.5%FSO Calibrated and temperature compensated Stainless steel construction

Piezoresistive pressure sensor  design Variety of Pressure & Electrical connections Output 4...20mA, 0... 10V, 0...5V and  others

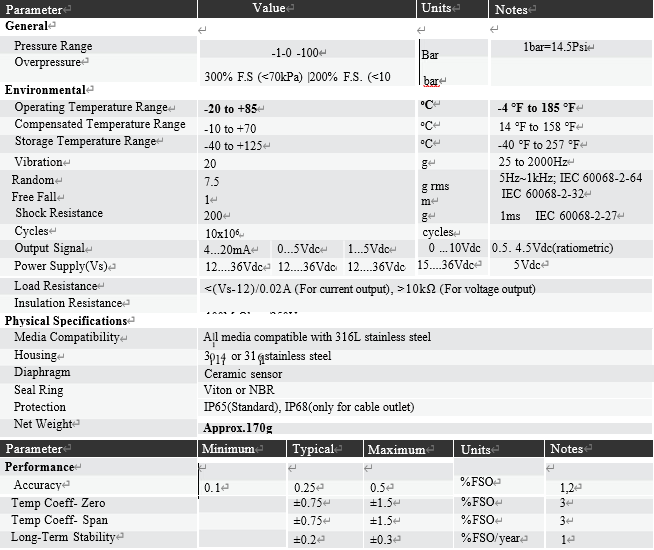

Performance Specifications

Notes

1. All values measured at 25°C(77°F)

2. Including non-linearity, hysteresis and repeatability.

3. -10°C to 70°C( 14°F to 158°F) with reference to 25°C(77°F).
