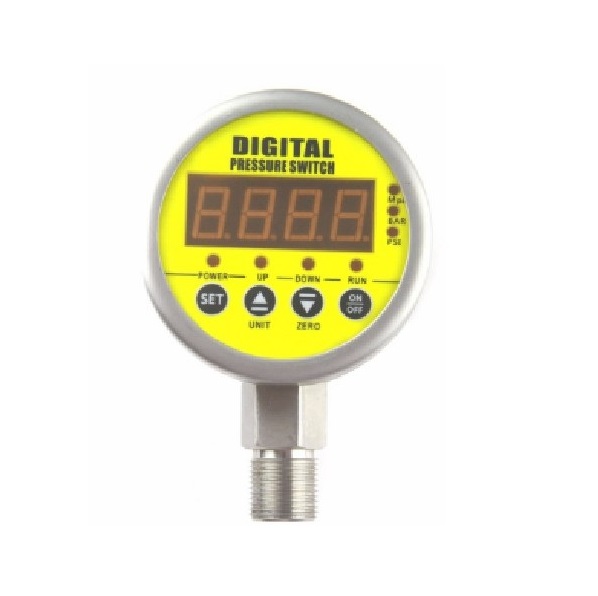

KT-S928E Digital Pressure Switch-KDS INSTRUMENT

KT-S928E is a intelligent digital pressure switch, setting pressure measurement, pressure display, control in one professional unit. It can be set two group NO/NC alarm points and also achieve two group high and low pressure control. “One key to zero clearing” and “three pressure unit to change” are available.

We pay more attention to the stability of circuit with anti-electromagnetic interference, cells lightning protection and electronic protection. The shell and connector are 304SS.

APPLICATION

Machine automation

Engineering machiner

Medical equipment

Source and water treatment system

Agricultural machinery

Testing for industry field

Hydraumatic and pneumatic system

CHARACTERISTICS

100mm diameter, 304SS shell

Radial and axial mounting

Different pressure units to chose, one key to zero clearing

Double relay output signal, each group with NO/NC, returning difference be set independent

Multiple connection modes, be used as controller, switch, digital electro connecting pressure gauge

SPECIFICATION

Range	General Range: 0-0.2...1...1.6...5...10...25...40...60...200Mpa Micro Range:0-5...10...25...40...60...100Kpa Negative Range:-100 ~0Kpa(-0.1 ~0Mpa)
Over Pressure	Range≥10Mpa 150%; Range<10Mpa 200%
Acc.	±0.5%FS,1%FS(100...160MPa)
Alarm Point	Alarm point be set discretionarily within the range.
Alarm Type	Double relays output signal(NO/NC)
Operating Temperature	-20~80℃
Compensation Temperature	-10 ~70 ℃
Electric Protection	Reverse protection, anti-electromagnetic interference
Sampling Frequency	5 times/sec
Measurement Medium	Gas, water, oil
Pressure Connection	M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4
Connector Material	304SS
Shell	304SS
Supply	24VDC, 220VAC, 380VAC
Weight	0.35Kg
