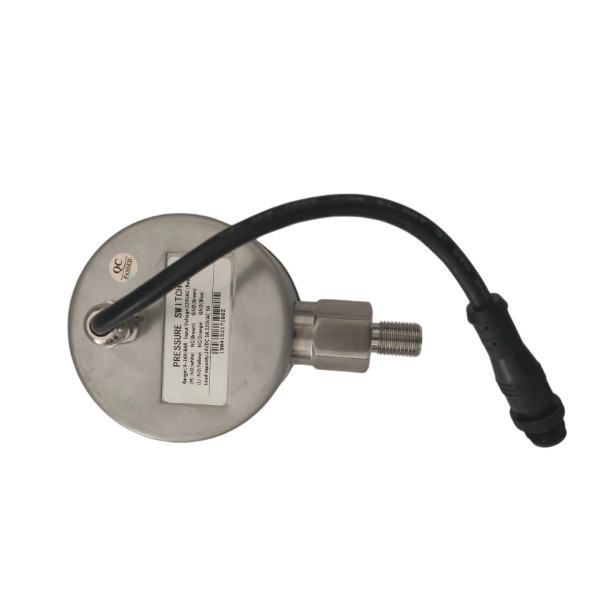

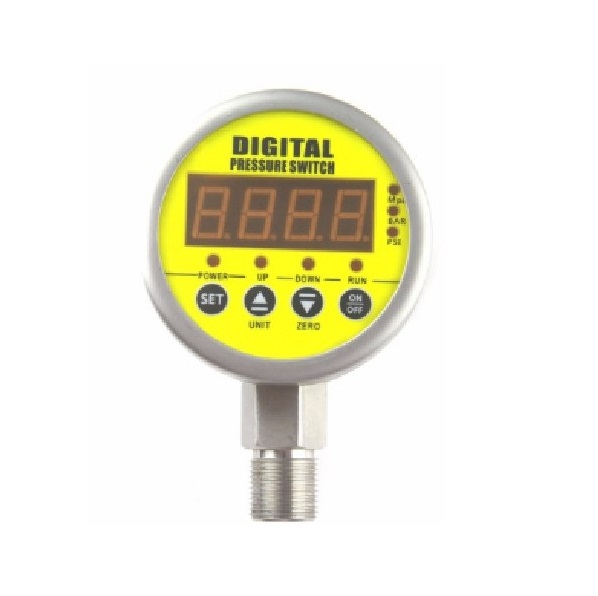

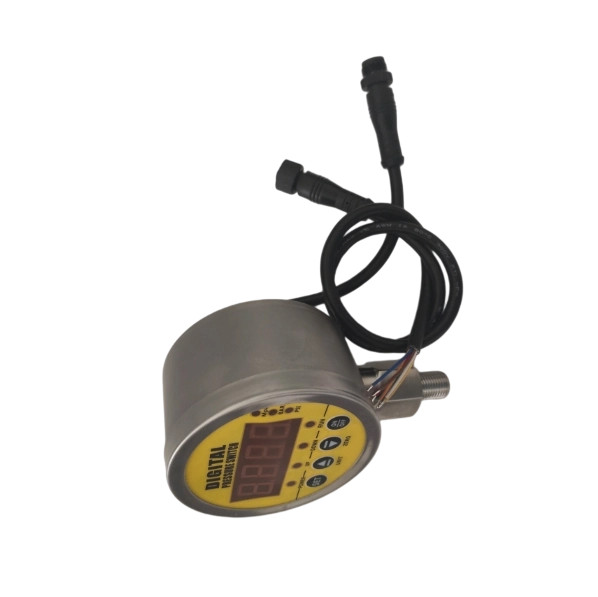

KT-S828E digital pressure switch
Model: KT-S828E
Minimum order:
Wheelbase:
Weight:
Function:
KT-S828E is a intelligent digital pressure switch, setting pressure measurement, pressure display, control in one professional unit. It can be set two group NO/NC alarm points and also achieve two group high and low pressure control. “One key to zero clearing” and “three pressure unit to change” are available.We pay more attention to the stability of circuit with anti-electromagnetic interference, cells lightning protection and electronic protection. The shell and connector are 304S.
APPLICATION
Ø Machine automation
Ø Engineering machiner
Ø Medical equipment
Ø Source and water treatment system
Ø Agricultural machinery
Ø Hydraumatic and pneumatic system
CHARACTERISTICS
Ø 80mm diameter, 304SS shell
Ø Radial and axial mounting ( axial mounting optioal ,the order code: KT-S828Z)
Ø Different pressure units to chose, one key to zero clearing
Ø Double relay output signal, each group with NO/NC, returning difference be set independent
Ø Multiple connection modes, be used as controller, switch, digital electro connecting pressure gauge
SPECIFICATION:
Range | -1-1600bar |
Over Pressure | Range≥100bar 150%; Range<100bar 200% |
Acc. | ±0.5%FS |
Alarm Point | Alarm point be set discretionarily within the range. |
Alarm Type | Double relays output signal(NO/NC) |
Operating Temperature | -20~ 80℃ |
Compensation Temperature | -10 ~70 ℃ |
Electric Protection | Reverse protection, anti-electromagnetic interference |
Sampling Frequency | 5 times/sec |
Measurement Medium | Gas, water, oil |
Pressure Connection | M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4 |
Bottom connect&Housing | 304SS |
Supply | 24VDC, 220VAC, 380VAC |
Weight | 0.35Kg |
