DPG280 digital pressure gauge-KDS INSTRUMENT

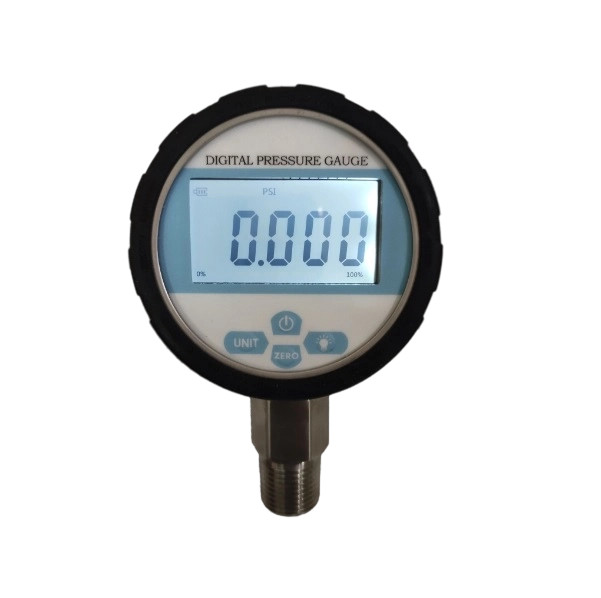

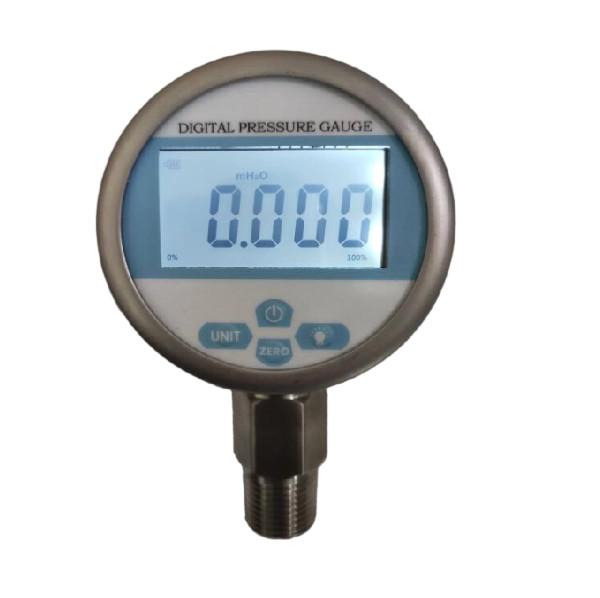

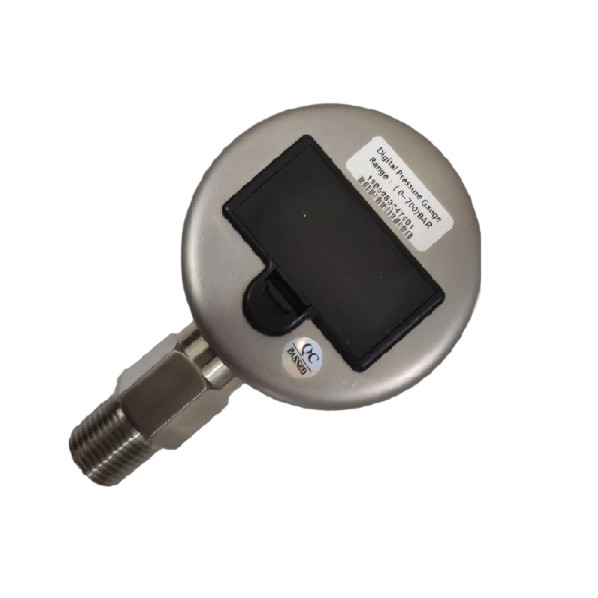

DPG280 Digital Pressure Gauge is portable, field digital gauge. With advanced microprocessor technology and state-of the-art silicon pressure sensors,DPG280 test gauges provide a reliable economic solution for pressure application in the industries of power,chemical ,petrol, oil&gas metallurgy,metering,etc. Every DPG280 Digital pressure gauge passes the high and lower temperature aging, so it could assure the products more accurate and reliable.

Features:

u Pressure range to 1000bar

u Accuracy： 0.4%F.S, 0.2%FS

u 4 bits big LCD display with Back light,

u 304 Stainless steel housing

u Pressure units available (Mpa、bar、kgf 、mH2O、PSI、KPA、mmHg、torr、mBAR、cmH2O、Pa);

u Zero clearing, On/off button,

u Low voltage alarm,

u Maximun and minimum function, Pressure percentage display

u Dry-Battery-powered,low power design keeping it work more than 12 months

u Connection :1/4NPT,1/2NPT,G1/4,G1/2

SPECIFICATION:

Range	Vacuum range: (0~-100) kPa 0-100kPa (absolute pressure) 0-250kPa (absolute pressure) 0-400kPa (absolute pressure) 0-1.0MPa (absolute pressure) Compound range: (-0.1~0.1)MPa (-0.1~0.25)MPa (-0.1~0.4)MPa (-0.1~0.6)MPa (-0.1~1.0)MPa (-0.1~2.5)MPa (-2.5~2.5 ) (-5~5) kPa (-10~10) kPa (-25~25) kPa (-50~50) kPa Micro pressure range: (0~2) kPa (0~5) kPa (0~10) kPa (0~25) kPa (0~50) kPa (0~100) kPa Conventional range: (0~160) kPa (0~250) kPa (0~400) kPa (0~600) kPa (0~1) MPa (0~1.6) MPa ... (0~60) MPa High pressure range: (0~100) MPa (0~160) MPa
Over Pressure	Range≥10Mpa 150%; Range<10Mpa 200%
Acc.	±0.4%FS, ±0.2%FS
Size	80mm, 60mm,100mm (optional )
Temperature compensation	10～ 30℃
Supply	3V(2 batteries of AAA)
IP rating	IP65
Peak values	Max,min
Display updated rate	5 times/second ( or according to client’s demand)
Measurement Medium	Gas, water, oil
Pressure Connection	M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4
Connector Material	304SS
Housing Material	304SS
Electric Protection	Reverse protection, anti-electromagnetic interference

Order No.	Pressure Range	Accuracy	Accuracy
DPG280-1	(-1~0)bar	0.2,G	0.4,G
DPG280-2	(0~0.16) bar	0.2,G	0.4,G
DPG280-3	(0~0.25) bar	0.2,G	0.4,G
DPG280-4	(0~0.4) bar	0.2,G	0.4,G
DPG280-5	(0~0.6)bar	0.2,G	0.4,G
DPG280-6	(0~1) bar	0.2,G	0.4,G
DPG280-7	(0~1.6) bar	0.2,G	0.4,G
DPG280-8	(0~2.5)bar	0.2,G	0.4,G
DPG280-9	(0~4) bar	0.2,G	0.4,G
DPG280-10	(0~6) bar	0.2,G	0.4,G
DPG280-11	(0~10) bar	0.2,G	0.4,G
DPG280-12	(0~16) bar	0.2,G	0.4,G
DPG280-13	(0~25) bar	0.2,G	0.4,G
DPG280-14	(0~40 )bar	0.2,G	0.4,G
DPG280-15	(0~60) bar	0.2,G	0.4,G
DPG280-16	(0~100) bar	0.2,G	0.4,G
DPG280-17	(0~160 )bar	0.2,G	0.4,G
DPG280-18	(0~250)bar	0.2,G	0.4,G
DPG280-19	(0~400) bar	0.2,G	0.4,G
DPG280-20	(0~600) bar	0.2,G	0.4,G
DPG280-21	(0~700) bar	0.2,G	0.4,G
DPG280-22	(0~1000) bar	0.2,G	0.4,G
DPG280-23	(0~1600) bar	0.2,G	0.4,G
