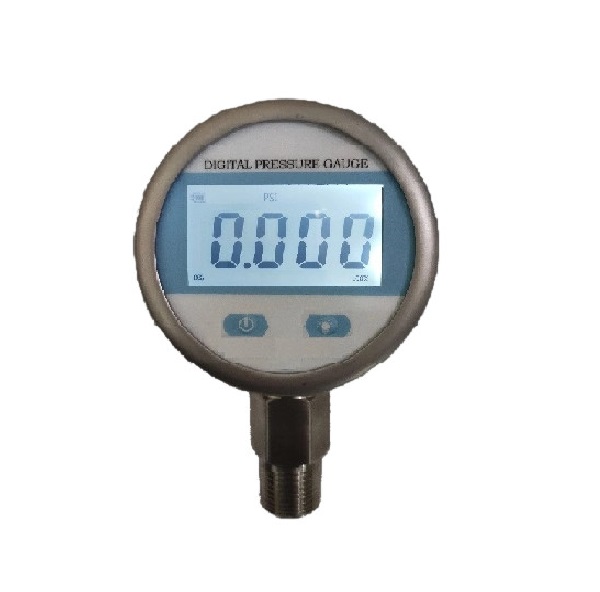

DPG260 Digital Pressure Gauge
Model: DPG260
Minimum order:
Wheelbase:
Weight:
Function:
DPG260 Digital Pressure Gauge is portable, field digital gauge. With advanced microprocessor technology and state-of the-art silicon pressure sensors,DPG260 test gauges provide a reliable economic solution for pressure application in the industries of power,chemical ,petrol, oil&gas metallurgy,metering,etc. Every DPG260 Digital pressure gauge passes the high and lower temperature aging, so it could assure the products more accurate and reliable.
Features:
u · 4 digit LCD showing the pressure accurately in real time
u Different pressure units to change , zero clearing, backlight, on/off·
u · 304 Stainless steel housing
u · Pressure units available (MPa、kPa、Pa、Psi、Bar、mmH2O、mmHg);
u · Battery powered , low-power design keeping working for 12 months,
u · Low voltage alarm,
u All stainless steel shell , small size
SPECIFICATION:
Range | (-0.1~25)MPa |
Over Pressure | 150% |
Acc. | 1%FS,0.5%,0.25%(20±5℃) |
Size | 65mm |
Backlight Color | White |
Supply | 3V(2 batteries of AAA) |
Long-term Stability | Typical ：±0.5%FS/ year |
Operating Temperature | 20±5℃ |
Compensation Temperature | 10~30℃ |
Electric Protection | En61326 |
Sampling Frequency | Gas , liquid , water |
Pressure Connection | G1/4,M14*1.5 or screw customized |
Connector Material | 304SS， |
Shell | 304SS |
Function | On/off, zero clearing, units changing, backlight |
