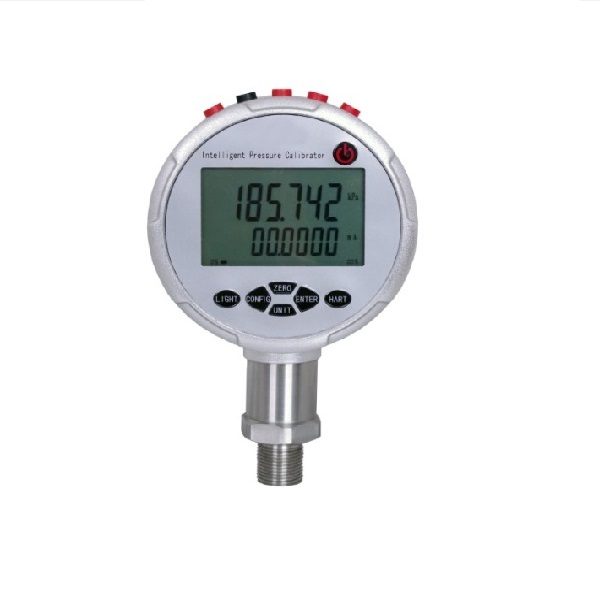

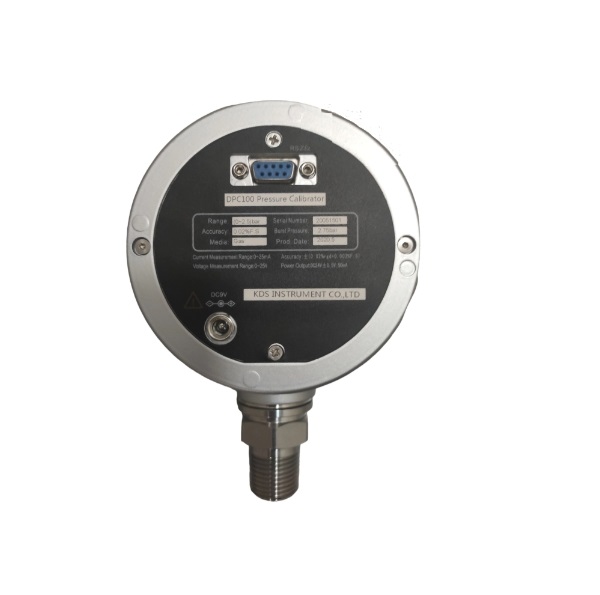

DPC100H Pressure Calibrator

DPC100H Intelligent Pressure Calibrators with HART protocol, a single range, full scale pressure measurement, high accuracy DC current, voltage measurement and the 24VDC power output function instrument. Can be used to verify the ordinary (precision) pressure gauge, pressure transmitter, pressure regulating valves, pressure switches and pressure of real-time measurement, and can debug the HART smart pressure transmitter.

FEATURES

      Accuracy: 0.025%FS,0.05%FS

• Pressure ranges to 2,500 bar

• Measure mA or V with 0.02% RD + 0.003%FS accuracy Power  transmitters during test using 24V loop supply Pressure switch test

• Engineering unit selectalbe: Pa,kPa,MPa, psi, bar, mbar, mmH₂O, mmHg

• Advanced temperature compensation

• Large, easy to read display with 6-digit resolution Back lighted display

• Rechargeable battery or AC adapter

• Two-point correction, user’s friendly

• Hart communication

• NIM traceable calibration certificate (optional)

APPLICATIONS

• Gauge calibration

• Precision pressure measurement

• Pressure transmitters calibration

• Pressure switch testing

• Safety relief valve testing

• Pressure regulator testing

• Intelligent pressure transmitter calibration

SPECIFICATIONS

Accuracy

• DPC100H-02: 0.02% of full scale

• DPC100H-05: 0.05% of full scale

Gauge types

• Gauge pressure

• Compound Pressure

• Absolute pressure

• Differential pressure

Conventional Pressure Range Selection
