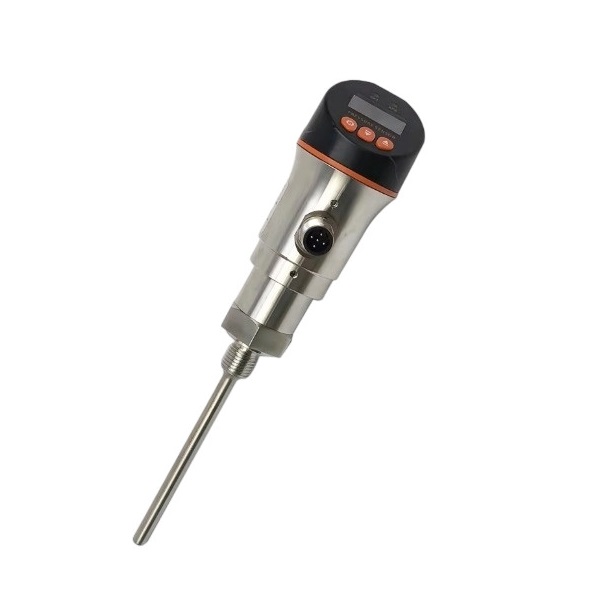

KT-S853T compact digital temperature switch

The KT-S853T is a digital temperature switch with an OLED screen designed for temperature measurement environments. The product features a 304 stainless steel case and a plastic case head design, offering protection up to IP65 rating, making it suitable for use in harsh conditions.

This product is equipped with a rotating structure, allowing for screen orientation adjustment to ensure optimal viewing angles for customers across various installation positions.

This temperature switch comes with multiple function buttons, enabling users to quickly set upper and lower limits, hysteresis mode/window mode, among other functions. It includes a standard 5-core M12 aviation plug cable, allowing users to directly replace old mechanical switches.

Product Applications:

◇ Machine tool drive monitoring

◇ High-speed trains and bullet trains

◇ Heating pipelines

◇ Automatic control equipment

◇ Automated production lines

◇ Other scenarios replacing mechanical switches.

Technical characteristics

☆304 Stainless Steel Housing, IP65 Structural Design

☆Rotating Structure for Quick Adjustment of Screen Orientation

☆OLED Screen Design with Wide Viewing Angle and High Resolution

☆Multiple Output Options Available: 4~20mA, PNP/NPN Switchable

☆Dual-Path Alarm Lights, Multifunctional Button Design

Specifications:

☆Measuring Range:      (-50~300)°C (customizable, e.g., -50~100°C)

☆Display Accuracy [°C]:   ±0.3 + (±0.1% of MS) (MS = Set Measuring Range Value)

☆Display Type:          OLED Screen

☆Supply Voltage:         12-28VDC

☆Output Signals:        - Output 1: NPN or PNP (switchable)

                      - Output 2: NPN or PNP (switchable)

                     - Output 3: 4~20mA

                     (Actual output modes depend on the product.)

☆Response Time:       50ms

☆Load Current:        <200mA

☆Operating Temperature: -20~65°C

☆Wiring Method:       M12 Connector

☆Electrical Protection:   Reverse Polarity Protection, Electromagnetic Interference Resistance

☆Thread Interface:      G12 (G1/2), G14 (G1/4), M9 (custom thread)

☆Material:             304 Stainless Steel

☆Protection Rating:     IP65

☆Accessories:         Standard 5-core M12 Aviation Plug Cable
