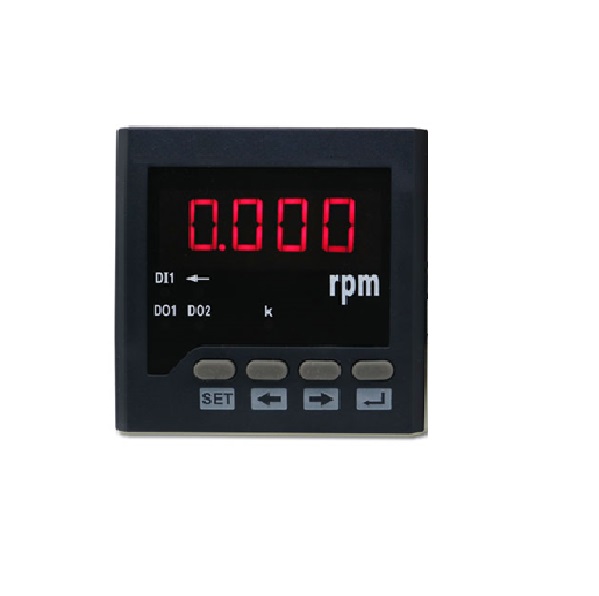

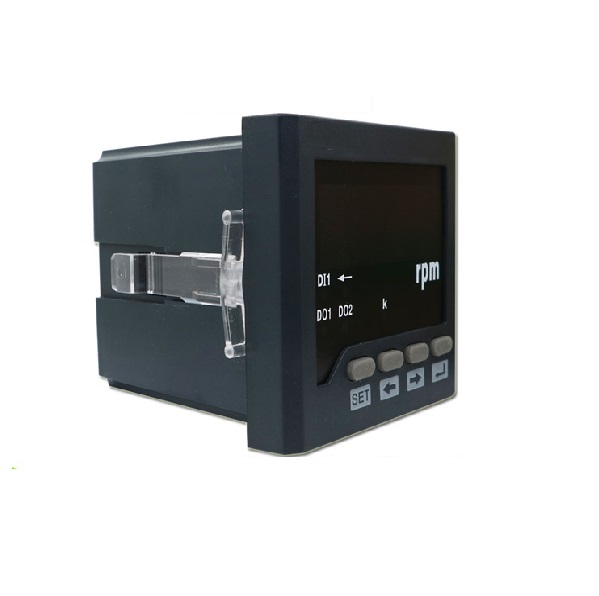

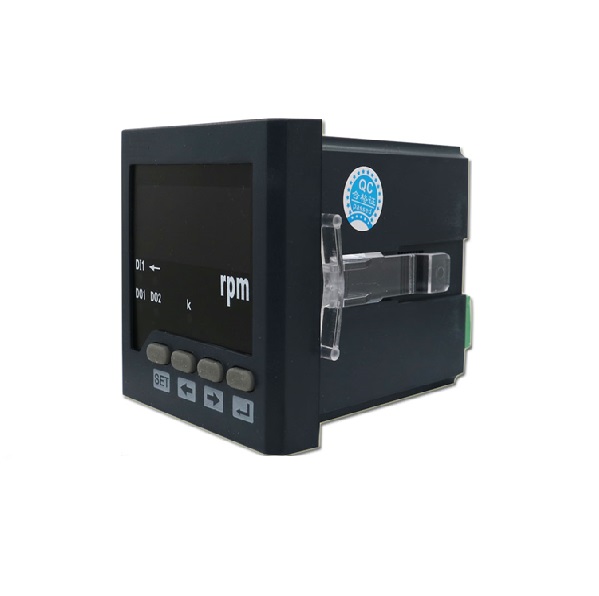

BE-72 DV Digital DC Voltage RPM Panel Meter-KDS INSTRUMENT

Overview
BE-DV series High precision measurement DC voltage. Provide the digital tube display, local data query. Digital LED display ,can set the ratio of current.

Synoptic

Adopting A.C . Sampling this series meter can measure electrical parameters of the net such as current,voltage,frequency etc.and set ratio through key on panet .

Name	Digital DC Voltage RPM Panel Meter
Model	BE-72 DV
Measure range	0-10V
Expand function	RS485,Modbus,switch input/output,analog output
Frame size	72x72mm
Cutout size	68x68mm
Material	ABS plastic shell housing
Power supply	AC/DC 80~270V,AC380V,AC100V
Features	Communication interface 1 way RS-485 communication, Modbus-RTU protocol 2.Baud rate: 1200~9600bps, the default 2400bps 3.Switch input support 2 stem node input. 4.The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A 5.Transmission output support 1 analog output: 0/4~20mA or 0~5/10V
