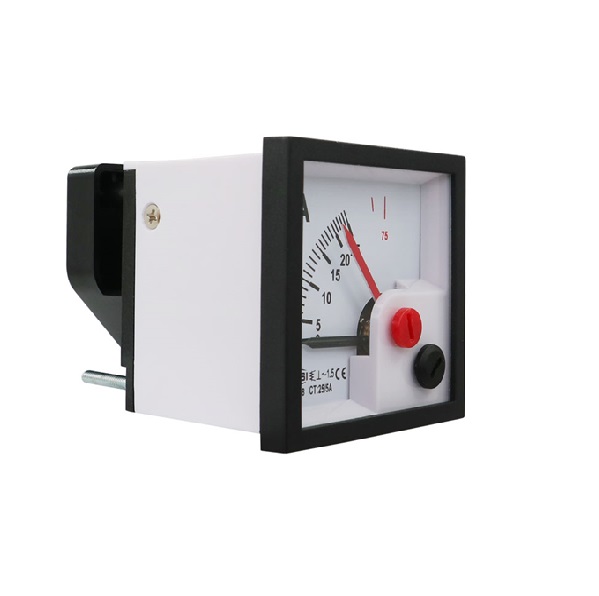

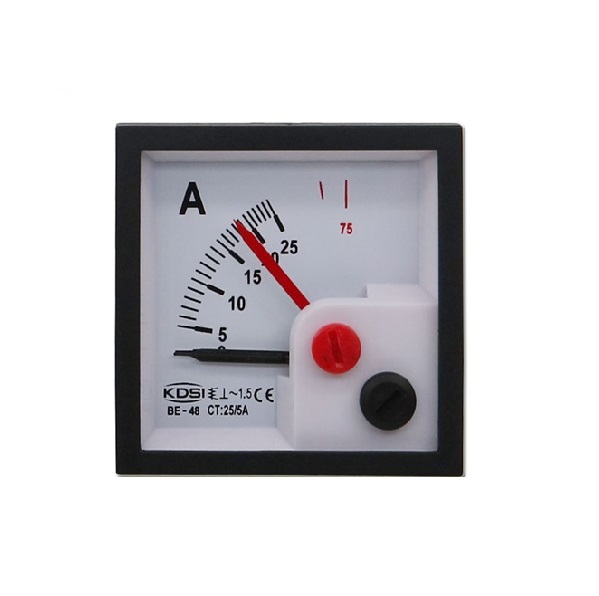

BE-48 Double Pointer AC Analog Amper Panel Meter
Model: BE-48
Minimum order:
Wheelbase:
Weight:
Function:
Electronic Apparatus BE-48 AC25/5A 3times Overload Double Pointer AC Analog Ampere Panel Meter
Measuring the alternative current,moving iron movement indicating true RMS values.
Product Description ______________________________________________
Type | Double Pointer AC Analog Ampere Panel Meter |
Model | BE-48 |
Composition | Glass window，ABS Resin frame and case，PC glass fiber base mounting fitting included. |
Accuracy | Class 1.5 |
Scale Plate | Normally Aluminum Alloy or Customized |
Front Frame(mm) | 48*48 |
Panel cutout (mm) | 45*45 |
Features | Zero Adjustment/Aging Test/Anti-static |
Operating Position | Normally in vertical position or customized |
Pointer | Normally Aluminum Alloy or Customized |
Overshoot | Less than 15% when the pointer is at the 2/3 of the scale.(Can be customized) |
Service Condition | -20~+50 degree |
