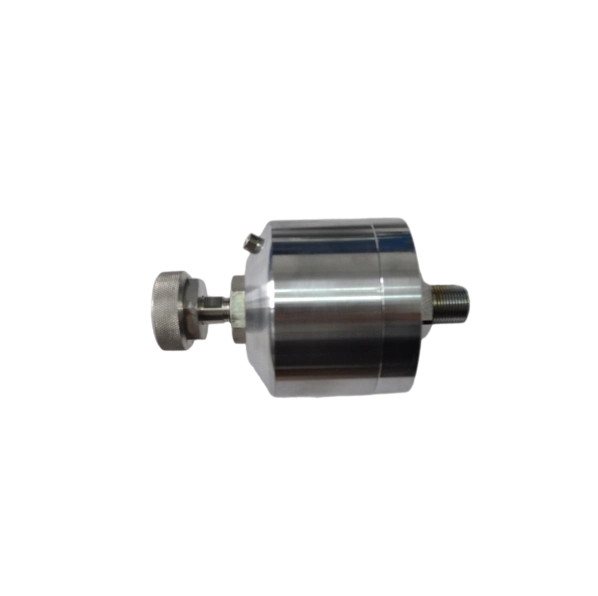

KTD407 oil-air filter

Gas liquid filter product details
use:
When using gas as the pressure transmitting medium to detect the pressure gauge, it acts as a filter to avoid contamination or damage to the testing equipment due to the contamination of the instrument being inspected;
Pressure range: (-0.1~4) MPa;
Filtration accuracy: 0.04mm;
Safety pressure: 5MPa;
Working temperature: (-10~50) °C
Storage temperature: (-20~70) °C
Volume: Φ30mm (maximum 36mm) × 144mm;
Gas liquid filter connection method:
The pressure source end is M20×1.5 external thread, and the instrument end is M20×1.5 internal thread.
