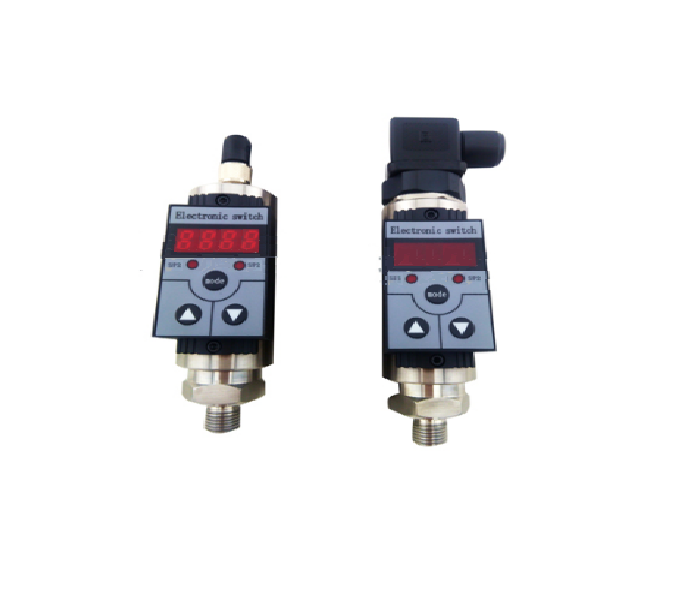

The KTS103 intelligent pressure switch is an intelligent digital pressure measurement and control product integrating pressure measurement, display, output and control. It has high stability and fast response speed, and is suitable for high-speed response occasions such as hydraulics.
Features
◆4 digits display the current pressure value
◆Fast switching rate, 320 times per second
◆Support range input small amplification and migration
◆Pressure preset switch point and switch point action delay function
◆ Equipped with node action light-emitting diodes for easy observation
◆Key-press adjustment and on-site setting of various parameters, convenient operation
◆2-channel switch output, with a load capacity of 1.2A
◆Analog output (4~20mA)
◆The display window can be rotated by 330°
Technical indicators and parameters
Control range |
-0.1~0~100Mpa |
control precision |
≤±0.5%FS |
stability |
≤0.2% /year |
Display accuracy |
±0.1%FS |
Display method |
4-bit digital LED |
Display range |
-1999~9999 |
Power range |
24V±20% |
Max power consumption |
< 1W |
Load capacity |
<24V 1.2A |
Switch type |
PNP,NPN optional |
Response time |
≤5ms |
Switch life |
>1 million times |
Protection level |
IP65 |
Medium temperature |
-20~80℃ |
Shape and wiring
Mechanical connection
It can be directly installed on the hydraulic pipeline through a pressure pipe connector (DIN3582 external thread G1/4) (other size connectors can be specified when ordering). In critical applications (such as severe vibrations or shocks), pressure pipe joints can be mechanically decoupled by micro hoses.
Electrical connections
Selection tips
1. The threaded interface can be customized according to user requirements, and it needs to be indicated in the contract.
2. If the user has special requirements for the performance parameters and functions of the product, please consult with our company.
