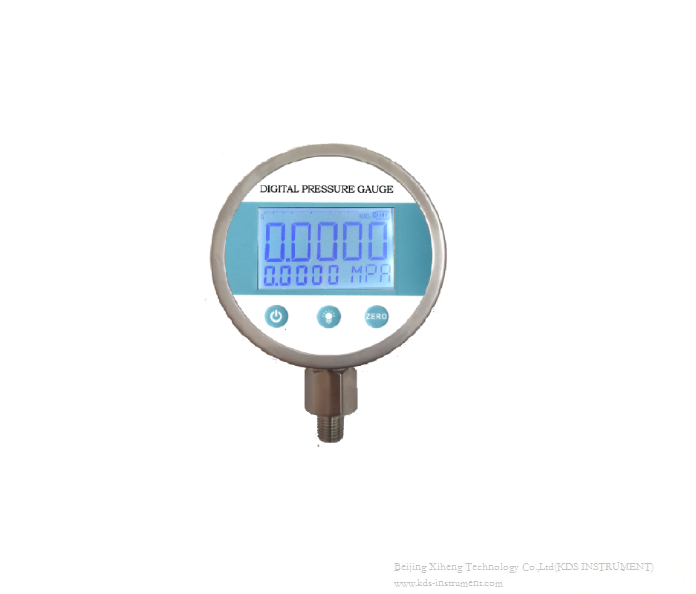

Digital pressure gauge is full electronic-structure and battery-powered, which make it very easy for on-site installation. Specifically, a high-precision piezo-resistive pressure sensor is used and the output signal is processed by the high-precision, low temperature drifting amplifier, then sent into the high-precision A/D converter to be converted into digital signal, after being computed and processed, the actual pressure value is showed on the LCD screen.
It has benefits: flexible use, simple operation, easy debugging, safe, reliable etc. It is being widely used to measure and display the pressure of the medium in hydro-power, water, petroleum, chemical, mechanical, hydraulic and other industries.
2. Features
◆ Size 100mm standard installation
◆ Large-screen LCD display, high resolution, back light, easy to read
◆ Automatically record the maximum pressure values during the measurement
◆ Pressure on the percentage of dynamic display, (the progress bar display)
◆ 10 units: MPa, kPa, Pa, bar, psi,Tor, ATM, Kgf(kgf / cm 2 ) , MMH(mmH 2 O),MH2(mH 2 O),
◆ 0 ~ 15min auto-off function
◆ Micro-power consumption, over 2 years in power-saving mode, continuous work 2,000 hours
◆ Parameter correction, correct zero and error in field application.
◆ Pressure range already setted before use
◆ Applicable to gases and liquids compatible with stainless steel
3. Technical parameters
Range |
-0.1-0-100MPa |
Accuracy class |
0.2%、0.5% |
Stability |
≤0.1% /年 |
Batteray valtage |
3.6VDC |
Display |
LCD |
Display range |
-1999~9999 |
Ambient temperature |
-20℃~70℃ |
Relative humidity |
≤80% |
Mounting thread |
1/4’’NPT /G1/2 or others |
Interface material |
Stainless steel |
4. Installation
It can be directly installed on the hydraulic pipeline or the container through the pressure pipe joint (M20 * 1.5) (other size joints can be specified when ordering).
5. Instructions for use
5.1. The storage and use of the meter is suitable in the environment where the ambient temperature is -20 ℃ ~ 70 ℃, and the humidity is less than 80%
5.2. When replacing the battery of DPG380, please use 9V alkaline battery (6LR61).
