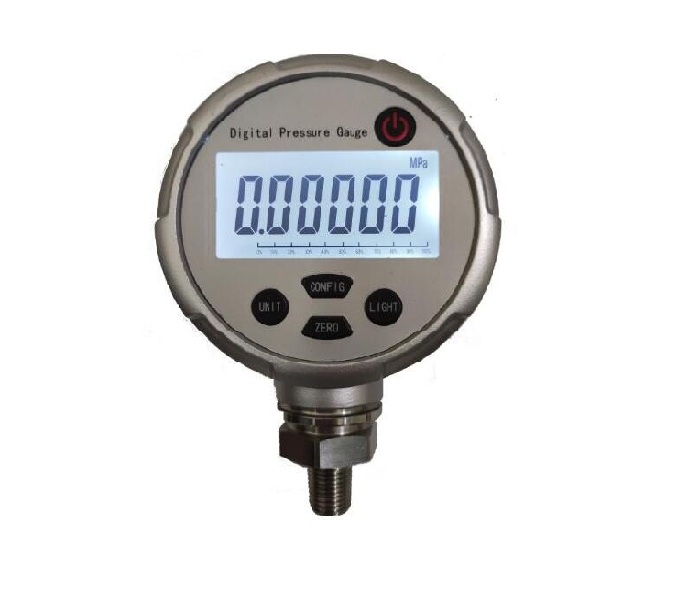

DPG106 wireless digital pressure gauge is very suitable for on-site and laboratory use, to complete precision pressure measurement and general pressure gauge measurement, precision pressure gauge, pressure gauge, digital display pressure gauge calibration, etc., it can completely replace the pointer type precision pressure gauge. It can be transmitted wirelessly, which is convenient for users to watch data directly in the control room.
main application
Precision pressure measurement
Calibration precision pressure gauge
Calibration sphygmomanometer
Pressure leak measurement
Peak record measurement
Features
■ High precision, high reliability
■ Large screen 6-digit display
■ Automatic temperature compensation function of 0~50 degrees
■ Maximum and minimum peak records
■ Micro power consumption technology, can work continuously for more than 10,000 hours
■ Over-voltage automatic alarm
technical parameter
Range: (-0.1~250)MPa, please refer to the range selection table for details
Accuracy level:
0.05%F.S, 0.05%F.S, 0.1%F.S optional
Pressure unit:
mmH2O, mmHg, inH2O, Pa, kPa, MPa, psi, bar, mbar
Display:
White backlight, 6-digit display, adjustable decimal point.
operating hours:
The fastest 10 times/second, (default 3 times/second), the slowest 1 time 10 seconds, adjustable speed
|
Measuring speed |
Working time |
|
10 Times/sec |
300hours |
|
3 Times/sec |
600 hours |
|
2 Times/sec |
8000 hours |
|
1 Times/2sec |
10000 hours |
|
1 Times/4sec |
15000 hours |
|
1 Times/6sec |
2years |
|
1 Times/10sec |
3 years |
Power supply:
Built-in 3 AA alkaline batteries, which can be connected with DC12V/1A power adapter.
The explosion-proof type has a built-in 14500 disposable lithium battery.
Use environment:
Environmental temperature: (-20~70)℃
Temperature compensation: (0~50)℃
Relative humidity: <95%
Atmospheric pressure: (86~106)kPa
Storage temperature: (-40~85)℃
Pressure interface:
Pressure interface: M20×1.5 external thread (default), other interfaces are optional, Ø4 quick connect internal socket (differential pressure type)
Additional features:
Peak record, pressure percentage indication
Other indicators:
Dimensions: Head Φ100mm×37mm, total length 132mm
Weight: 0.45kg
Pressure port: M20×1.5
Communication interface: RS232
Selection of conventional pressure gauge
|
Pressure range |
Accuracy grade |
Medium |
Burst pressure |
|
(-100~0)kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~16) kPa |
0.05，(0.1,0.2) |
Gas/liquid |
3X |
|
(0~25) kPa |
0.05，(0.1,0.2) |
Gas/liquid |
3X |
|
(0~40) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~60) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~100) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~160) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~250) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~400) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~600) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~1) MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~1.6) MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~2.5) MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~4 )MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~6) MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~10) MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~16 )MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~25)MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~40) MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(0~60) MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
2X |
|
(0~100) MPa |
0.05，(0.1,0.2) |
Gas/liquid |
1.5X |
|
(0~160) MPa |
0.05，(0.1,0.2) |
Gas/liquid |
1.5X |
|
(0~200) MPa |
0.05，(0.1,0.2) |
Gas/liquid |
1.2X |
Selection of micro pressure range pressure gauge
|
Pressure range |
Accuracy grade |
Medium |
Burst pressure |
|
±500Pa |
0.2 |
Gas |
3X |
|
±1kPa |
0.05，(0.1,0.2) |
Gas |
3X |
|
±2kPa |
0.05，(0.1,0.2) |
Gas |
3X |
|
±5kPa |
0.05，(0.1,0.2) |
Gas |
3X |
|
±10kPa |
0.02，(0.05,0.1,0.2) |
Gas |
3X |
Selection of composite range pressure gauge
|
Pressure range |
Accuracy grade |
Medium |
Burst pressure |
|
±16kPa |
0.05，(0.1,0.2) |
Gas/liquid |
3X |
|
±25kPa |
0.05，(0.1,0.2) |
Gas/liquid |
3X |
|
±40kPa |
0.05，(0.1,0.2) |
Gas/liquid |
3X |
|
±60kPa |
0.05，(0.1,0.2) |
Gas/liquid |
3X |
|
±100kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(-100~160)kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(-100~250) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(-100~400) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(-100~600) kPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(-0.1~1) MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(-0.1~1.6) MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
|
(-0.1~2.5) MPa |
0.02，(0.05,0.1,0.2) |
Gas/liquid |
3X |
[1] Range of automatic temperature compensation: (-10~50℃), 1 year accuracy;
[2] The absolute pressure is 0.05% F.S, and the guaranteed accuracy time is 180 days;
[3] The gas pressure medium is required to be non-corrosive gas.
